Simple CNN
Author: https://www.kaggle.com/mariammohamed
From: https://www.kaggle.com/mariammohamed/simple-cnn
License: Apache 2.0
Score: 0.9995
In [1]:
# This Python 3 environment comes with many helpful analytics libraries installed
# It is defined by the kaggle/python docker image: https://github.com/kaggle/docker-python
# For example, here's several helpful packages to load in
import numpy as np # linear algebra
import pandas as pd # data processing, CSV file I/O (e.g. pd.read_csv)
# Input data files are available in the "../input/" directory.
# For example, running this (by clicking run or pressing Shift+Enter) will list the files in the input directory
import os
print(os.listdir("../input"))
# Any results you write to the current directory are saved as output.
['train', 'test', 'train.csv', 'sample_submission.csv']
In [2]:
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.image as mpimg
import glob
import scipy
import cv2
import keras
Using TensorFlow backend.
In [3]:
import random
Exploration
In [4]:
train_data = pd.read_csv('../input/train.csv')
In [5]:
train_data.shape
Out[5]:
(17500, 2)
In [6]:
train_data.head()
Out[6]:
| id | has_cactus | |
|---|---|---|
| 0 | 0004be2cfeaba1c0361d39e2b000257b.jpg | 1 |
| --- | --- | --- |
| 1 | 000c8a36845c0208e833c79c1bffedd1.jpg | 1 |
| --- | --- | --- |
| 2 | 000d1e9a533f62e55c289303b072733d.jpg | 1 |
| --- | --- | --- |
| 3 | 0011485b40695e9138e92d0b3fb55128.jpg | 1 |
| --- | --- | --- |
| 4 | 0014d7a11e90b62848904c1418fc8cf2.jpg | 1 |
| --- | --- | --- |
In [7]:
train_data.has_cactus.unique()
Out[7]:
array([1, 0])
In [8]:

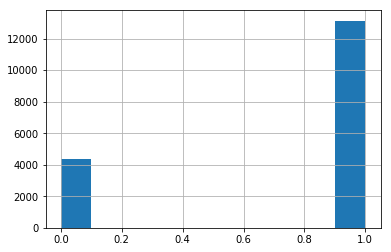

train_data.has_cactus.hist()
Out[8]:
<matplotlib.axes._subplots.AxesSubplot at 0x7fedb9b7a080>
In [9]:
train_data.has_cactus.value_counts()
Out[9]:
1 13136
0 4364
Name: has_cactus, dtype: int64
In [10]:

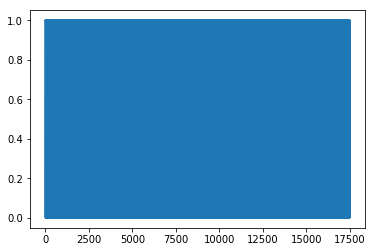

train_data.has_cactus.plot()
Out[10]:
<matplotlib.axes._subplots.AxesSubplot at 0x7fedb9aa7f98>
Model
In [11]:
def image_generator2(batch_size = 16, all_data=True, shuffle=True, train=True, indexes=None):
while True:
if indexes is None:
if train:
if all_data:
indexes = np.arange(train_data.shape[0])
else:
indexes = np.arange(train_data[:15000].shape[0])
if shuffle:
np.random.shuffle(indexes)
else:
indexes = np.arange(train_data[15000:].shape[0])
N = int(len(indexes) / batch_size)
# Read in each input, perform preprocessing and get labels
for i in range(N):
current_indexes = indexes[i*batch_size: (i+1)*batch_size]
batch_input = []
batch_output = []
for index in current_indexes:
img = mpimg.imread('../input/train/train/' + train_data.id[index])
batch_input += [img]
batch_input += [img[::-1, :, :]]
batch_input += [img[:, ::-1, :]]
batch_input += [np.rot90(img)]
temp_img = np.zeros_like(img)
temp_img[:28, :, :] = img[4:, :, :]
batch_input += [temp_img]
temp_img = np.zeros_like(img)
temp_img[:, :28, :] = img[:, 4:, :]
batch_input += [temp_img]
temp_img = np.zeros_like(img)
temp_img[4:, :, :] = img[:28, :, :]
batch_input += [temp_img]
temp_img = np.zeros_like(img)
temp_img[:, 4:, :] = img[:, :28, :]
batch_input += [temp_img]
batch_input += [cv2.resize(img[2:30, 2:30, :], (32, 32))]
batch_input += [scipy.ndimage.interpolation.rotate(img, 10, reshape=False)]
batch_input += [scipy.ndimage.interpolation.rotate(img, 5, reshape=False)]
for _ in range(11):
batch_output += [train_data.has_cactus[index]]
batch_input = np.array( batch_input )
batch_output = np.array( batch_output )
yield( batch_input, batch_output.reshape(-1, 1) )
In [12]:
positive_examples = train_data[train_data.has_cactus==1]
negative_examples = train_data[train_data.has_cactus==0]
In [13]:
def augment_img(img):
batch_input = []
batch_input += [img]
batch_input += [img[::-1, :, :]]
batch_input += [img[:, ::-1, :]]
batch_input += [np.rot90(img)]
temp_img = np.zeros_like(img)
temp_img[:28, :, :] = img[4:, :, :]
batch_input += [temp_img]
temp_img = np.zeros_like(img)
temp_img[:, :28, :] = img[:, 4:, :]
batch_input += [temp_img]
temp_img = np.zeros_like(img)
temp_img[4:, :, :] = img[:28, :, :]
batch_input += [temp_img]
temp_img = np.zeros_like(img)
temp_img[:, 4:, :] = img[:, :28, :]
batch_input += [temp_img]
batch_input += [cv2.resize(img[2:30, 2:30, :], (32, 32))]
batch_input += [scipy.ndimage.interpolation.rotate(img, 10, reshape=False)]
batch_input += [scipy.ndimage.interpolation.rotate(img, 5, reshape=False)]
return batch_input
In [14]:
def image_generator(batch_size = 8, all_data=True, shuffle=True, train=True, indexes=None):
while True:
if indexes is None:
if train:
indexes = positive_examples.index.tolist()
neg_indexes = negative_examples.index.tolist()
if shuffle:
np.random.shuffle(indexes)
np.random.shuffle(neg_indexes)
N = int(len(indexes) / (batch_size/2))
neg_N = int(len(neg_indexes) / (batch_size/2))
j = 0
# Read in each input, perform preprocessing and get labels
for i in range(N):
current_indexes = indexes[i*(batch_size//2): (i+1)*(batch_size//2)]
current_neg_indexes = neg_indexes[j*(batch_size//2): (j+1)*(batch_size//2)]
j = (j + 1) % neg_N
batch_input = []
batch_output = []
for ind in range(len(current_indexes)):
index = current_indexes[ind]
neg_index = current_neg_indexes[ind]
img = mpimg.imread('../input/train/train/' + train_data.id[index])
batch_input.extend(augment_img(img))
for _ in range(11):
batch_output += [train_data.has_cactus[index]]
neg_img = mpimg.imread('../input/train/train/' + train_data.id[neg_index])
batch_input.extend(augment_img(neg_img))
for _ in range(11):
batch_output += [train_data.has_cactus[neg_index]]
# factor = 0.05
# new_img = factor*neg_img + (1-factor)*img
# batch_input.append(new_img)
# batch_output += [factor*train_data.has_cactus[neg_index]+(1-factor)*train_data.has_cactus[index]]
# factor = 0.95
# new_img = factor*neg_img + (1-factor)*img
# batch_input.append(new_img)
# batch_output += [factor*train_data.has_cactus[neg_index]+(1-factor)*train_data.has_cactus[index]]
batch_input = np.array( batch_input )
batch_output = np.array( batch_output )
yield( batch_input, batch_output.reshape(-1, 1) )
In [15]:
model = keras.models.Sequential()
model.add(keras.layers.Conv2D(64, (5, 5), input_shape=(32, 32, 3)))
model.add(keras.layers.BatchNormalization())
model.add(keras.layers.LeakyReLU(alpha=0.3))
model.add(keras.layers.Conv2D(64, (5, 5)))
model.add(keras.layers.BatchNormalization())
model.add(keras.layers.LeakyReLU(alpha=0.3))
model.add(keras.layers.Conv2D(128, (5, 5)))
model.add(keras.layers.BatchNormalization())
model.add(keras.layers.LeakyReLU(alpha=0.3))
model.add(keras.layers.Conv2D(128, (5, 5)))
model.add(keras.layers.BatchNormalization())
model.add(keras.layers.LeakyReLU(alpha=0.3))
model.add(keras.layers.Conv2D(256, (3, 3)))
model.add(keras.layers.BatchNormalization())
model.add(keras.layers.LeakyReLU(alpha=0.3))
model.add(keras.layers.Conv2D(256, (3, 3)))
model.add(keras.layers.BatchNormalization())
model.add(keras.layers.LeakyReLU(alpha=0.3))
model.add(keras.layers.Conv2D(512, (3, 3)))
model.add(keras.layers.BatchNormalization())
model.add(keras.layers.LeakyReLU(alpha=0.3))
model.add(keras.layers.Flatten())
model.add(keras.layers.Dense(100))
model.add(keras.layers.BatchNormalization())
model.add(keras.layers.LeakyReLU(alpha=0.3))
model.add(keras.layers.Dense(1, activation='sigmoid'))
WARNING:tensorflow:From /opt/conda/lib/python3.6/site-packages/tensorflow/python/framework/op_def_library.py:263: colocate_with (from tensorflow.python.framework.ops) is deprecated and will be removed in a future version.
Instructions for updating:
Colocations handled automatically by placer.
In [16]:
model.summary()
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
conv2d_1 (Conv2D) (None, 28, 28, 64) 4864
_________________________________________________________________
batch_normalization_1 (Batch (None, 28, 28, 64) 256
_________________________________________________________________
leaky_re_lu_1 (LeakyReLU) (None, 28, 28, 64) 0
_________________________________________________________________
conv2d_2 (Conv2D) (None, 24, 24, 64) 102464
_________________________________________________________________
batch_normalization_2 (Batch (None, 24, 24, 64) 256
_________________________________________________________________
leaky_re_lu_2 (LeakyReLU) (None, 24, 24, 64) 0
_________________________________________________________________
conv2d_3 (Conv2D) (None, 20, 20, 128) 204928
_________________________________________________________________
batch_normalization_3 (Batch (None, 20, 20, 128) 512
_________________________________________________________________
leaky_re_lu_3 (LeakyReLU) (None, 20, 20, 128) 0
_________________________________________________________________
conv2d_4 (Conv2D) (None, 16, 16, 128) 409728
_________________________________________________________________
batch_normalization_4 (Batch (None, 16, 16, 128) 512
_________________________________________________________________
leaky_re_lu_4 (LeakyReLU) (None, 16, 16, 128) 0
_________________________________________________________________
conv2d_5 (Conv2D) (None, 14, 14, 256) 295168
_________________________________________________________________
batch_normalization_5 (Batch (None, 14, 14, 256) 1024
_________________________________________________________________
leaky_re_lu_5 (LeakyReLU) (None, 14, 14, 256) 0
_________________________________________________________________
conv2d_6 (Conv2D) (None, 12, 12, 256) 590080
_________________________________________________________________
batch_normalization_6 (Batch (None, 12, 12, 256) 1024
_________________________________________________________________
leaky_re_lu_6 (LeakyReLU) (None, 12, 12, 256) 0
_________________________________________________________________
conv2d_7 (Conv2D) (None, 10, 10, 512) 1180160
_________________________________________________________________
batch_normalization_7 (Batch (None, 10, 10, 512) 2048
_________________________________________________________________
leaky_re_lu_7 (LeakyReLU) (None, 10, 10, 512) 0
_________________________________________________________________
flatten_1 (Flatten) (None, 51200) 0
_________________________________________________________________
dense_1 (Dense) (None, 100) 5120100
_________________________________________________________________
batch_normalization_8 (Batch (None, 100) 400
_________________________________________________________________
leaky_re_lu_8 (LeakyReLU) (None, 100) 0
_________________________________________________________________
dense_2 (Dense) (None, 1) 101
=================================================================
Total params: 7,913,625
Trainable params: 7,910,609
Non-trainable params: 3,016
_________________________________________________________________
In [17]:
opt = keras.optimizers.SGD(lr=0.0001, momentum=0.9, nesterov=True)
model.compile(optimizer=opt, loss='binary_crossentropy', metrics=['accuracy'])
In [18]:
def step_decay_schedule(initial_lr=1e-3, decay_factor=0.75, step_size=10):
'''
Wrapper function to create a LearningRateScheduler with step decay schedule.
'''
def schedule(epoch):
return initial_lr * (decay_factor ** np.floor(epoch/step_size))
return keras.callbacks.LearningRateScheduler(schedule)
lr_sched = step_decay_schedule(initial_lr=1e-3, decay_factor=0.75, step_size=2)
early_stop = keras.callbacks.EarlyStopping(monitor='loss', patience=3)
model.fit_generator(image_generator(), steps_per_epoch= train_data.shape[0] / 8, epochs=30, callbacks=[lr_sched, early_stop])
WARNING:tensorflow:From /opt/conda/lib/python3.6/site-packages/tensorflow/python/ops/math_ops.py:3066: to_int32 (from tensorflow.python.ops.math_ops) is deprecated and will be removed in a future version.
Instructions for updating:
Use tf.cast instead.
Epoch 1/30
2188/2187 [==============================] - 86s 39ms/step - loss: 0.0982 - acc: 0.9642
Epoch 2/30
2188/2187 [==============================] - 81s 37ms/step - loss: 0.0414 - acc: 0.9855
Epoch 3/30
2188/2187 [==============================] - 80s 37ms/step - loss: 0.0200 - acc: 0.9931
Epoch 4/30
2188/2187 [==============================] - 80s 37ms/step - loss: 0.0122 - acc: 0.9961
Epoch 5/30
2188/2187 [==============================] - 80s 37ms/step - loss: 0.0066 - acc: 0.9982
Epoch 6/30
1897/2187 [=========================>....] - ETA: 10s - loss: 0.0050 - acc: 0.9988
In [19]:
# def step_decay_schedule(initial_lr=1e-3, decay_factor=0.75, step_size=10):
# '''
# Wrapper function to create a LearningRateScheduler with step decay schedule.
# '''
# def schedule(epoch):
# return initial_lr * (decay_factor ** np.floor(epoch/step_size))
# return keras.callbacks.LearningRateScheduler(schedule)
# lr_sched = step_decay_schedule(initial_lr=1e-3, decay_factor=0.75, step_size=2)
# model.fit_generator(image_generator(), steps_per_epoch= train_data.shape[0] / 8, epochs=20, callbacks=[lr_sched])
In [20]:
model.evaluate_generator(image_generator2(), steps=train_data.shape[0]//16)
Out[20]:
[0.009791018411583233, 0.9962779681069635]
In [21]:
# model.evaluate_generator(image_generator(), steps=train_data.shape[0]//8)
In [22]:
# keras.backend.eval(model.optimizer.lr.assign(0.00001))
In [23]:
# model.fit_generator(image_generator(), steps_per_epoch= train_data.shape[0] / 16, epochs=15)
In [24]:
indexes = np.arange(train_data.shape[0])
N = int(len(indexes) / 64)
batch_size = 64
wrong_ind = []
for i in range(N):
current_indexes = indexes[i*64: (i+1)*64]
batch_input = []
batch_output = []
for index in current_indexes:
img = mpimg.imread('../input/train/train/' + train_data.id[index])
batch_input += [img]
batch_output.append(train_data.has_cactus[index])
batch_input = np.array( batch_input )
# batch_output = np.array( batch_output )
model_pred = model.predict_classes(batch_input)
for j in range(len(batch_output)):
if model_pred[j] != batch_output[j]:
wrong_ind.append(i*batch_size+j)
In [25]:
len(wrong_ind)
Out[25]:
28
In [26]:
indexes = np.arange(train_data.shape[0])
N = int(len(indexes) / 64)
batch_size = 64
wrong_ind = []
for i in range(N):
current_indexes = indexes[i*64: (i+1)*64]
batch_input = []
batch_output = []
for index in current_indexes:
img = mpimg.imread('../input/train/train/' + train_data.id[index])
batch_input += [img[::-1, :, :]]
batch_output.append(train_data.has_cactus[index])
batch_input = np.array( batch_input )
model_pred = model.predict_classes(batch_input)
for j in range(len(batch_output)):
if model_pred[j] != batch_output[j]:
wrong_ind.append(i*batch_size+j)
In [27]:
len(wrong_ind)
Out[27]:
60
In [28]:
indexes = np.arange(train_data.shape[0])
N = int(len(indexes) / 64)
batch_size = 64
wrong_ind = []
for i in range(N):
current_indexes = indexes[i*64: (i+1)*64]
batch_input = []
batch_output = []
for index in current_indexes:
img = mpimg.imread('../input/train/train/' + train_data.id[index])
batch_input += [img[:, ::-1, :]]
batch_output.append(train_data.has_cactus[index])
batch_input = np.array( batch_input )
model_pred = model.predict_classes(batch_input)
for j in range(len(batch_output)):
if model_pred[j] != batch_output[j]:
wrong_ind.append(i*batch_size+j)
In [29]:
len(wrong_ind)
Out[29]:
71
In [30]:
!ls ../input/test/test/* | wc -l
4000
In [31]:
test_files = os.listdir('../input/test/test/')
In [32]:
len(test_files)
Out[32]:
4000
In [33]:
batch = 40
all_out = []
for i in range(int(4000/batch)):
images = []
for j in range(batch):
img = mpimg.imread('../input/test/test/'+test_files[i*batch + j])
images += [img]
out = model.predict(np.array(images))
all_out += [out]
In [34]:
all_out = np.array(all_out).reshape((-1, 1))
In [35]:
all_out.shape
Out[35]:
(4000, 1)
In [36]:
sub_file = pd.DataFrame(data = {'id': test_files, 'has_cactus': all_out.reshape(-1).tolist()})
In [37]:
sub_file.to_csv('sample_submission.csv', index=False)
